watermark

watermark

ADVANCED / PREMIUM BASIC

Inserts a watermark into an Excel spreadsheet.

Description
public watermark($source, $target, $type = 'text', $options = array())

This method allows to insert a watermark text or image into an XLSX spreadsheet.

Parameters

source

The path to the source XLSX file.

target

The path to the XLSX file resulting after adding the watermark.

type

'text' or 'image'.

options

The possible keys and values are:

Key Type Description
colSize int Number of cols. Default as 6.
rowSize int Number of rows. Default as 6.
position string Cell position. Default as 'F15'.
rotation int 60.000ths of a degree. Default as 315.
transparency int 0 to 100. Default as 60.

If type is 'text':

Key Type Description
text string The string of text used for watermarking. Default as 'DRAFT'.
backgroundColor string FFFF00, CCCCCC..., none. Default as 'none'.
color string Hexadecimal value or color name. Default as '7D7F7C'.
fontSize int 8, 9, 10, 11 ... Default as 60.

If type is 'image':

Key Type Description
image Image file path, base64, stream or GdImage. Watermark image.
Exceptions

Unknown watermark type.

Image not provided.

Image format is not supported.

Code samples

Example #1

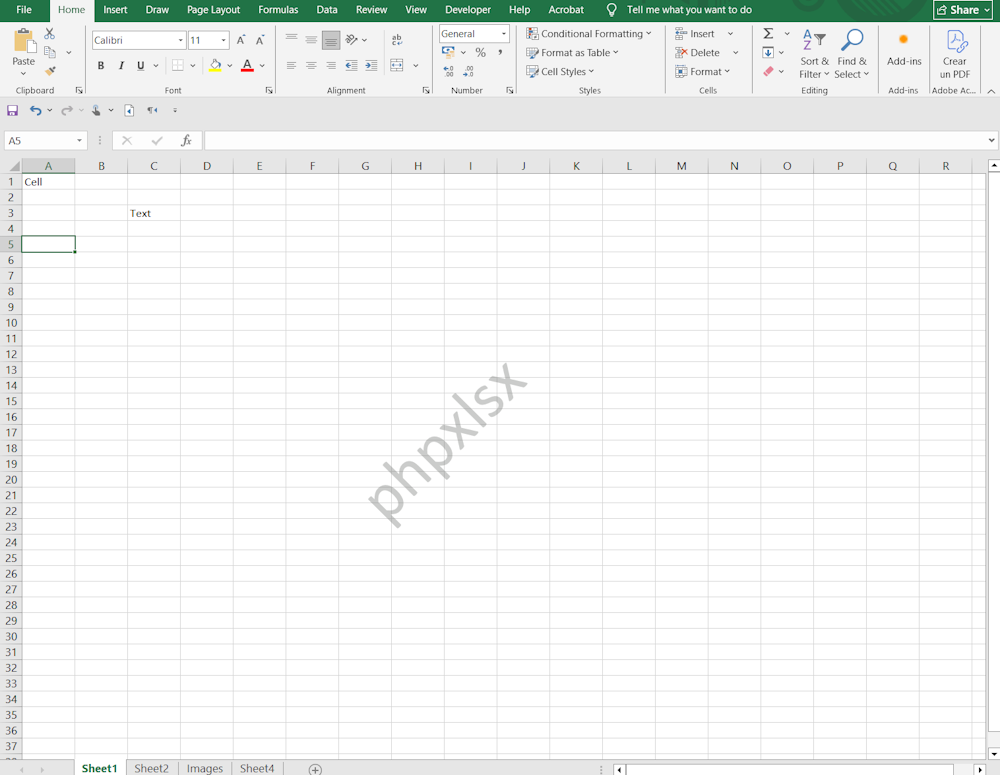

The resulting XLSX looks like:

Example #2

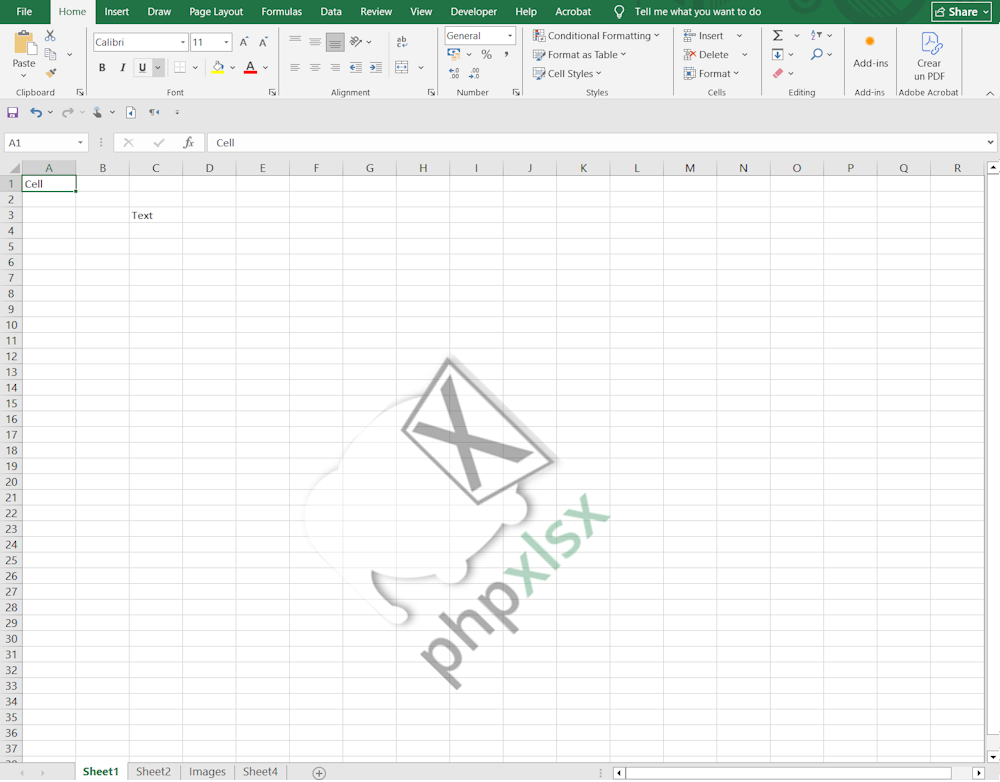

The resulting XLSX looks like:

Release notes
  • phpxlsx 5.5:
    • new method.
